BZD180-102 LED Explosion-proof Lights

  • Type of Light Source: LED Chip
  • Color Temperature: 3000-6500K
  • Luminous Efficiency: ≥ 100lm/W
  • Color Rendering Index: Ra > 75
  • Protection Grade: IP66
  • Anti-corrosion Grade: WF2
  • Use Environment Temperature: -40℃≤Ta≤+40℃
  • Import Port Specification: G3/4”
  • Applicable Cable Outer Diameter: Φ8-14mm/2.5mm²
  • Executive Standard: GB38336.1、GB38336.2、GB12476.1、GB12476.5、IEC60079-0、IEC60079-1、IEC61241-0、IEC61241-1
  • Explosion-proof Mark: Exd IIC T6 Gb / Ex tD A21 IP66 T80℃

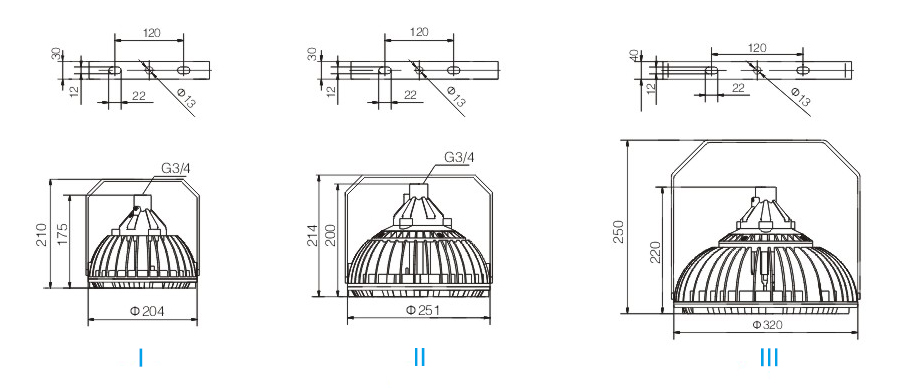

Product Family

Product Watt:

Product Watt:

Product Size:

20 W / 30 W / 40 W

20 W / 30 W / 40 W

Φ204×H210 MM

50 W / 60 W

50 W / 60 W

Φ251×H214 MM

70 W / 80 W / 100 W

120 W

Φ320×H250 MM
